Hongfa New full automatic artificial quartz stone machinery/artificial quartz slab making machine

  • >=1 Sets
    US$25,000.00
Model Number:
LF-Quartz
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Production Capacity:
Customized Accoridng
Power(W):
700-1000kw
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Construction works
Condition:
New
Application:
Building Materials Machinery
Automatic Grade:
Automatic
Place of Origin:
Guangxi, China
Brand Name:
HONGFA
Voltage:
Designed as local power supply
Weight:
50T
Features:
Automatic
Certification:
ISO9001/CE
Key Selling Points:
Long Service Life
Tile thickness:
6-30mm
Tile usage:
Hotel countertops kitchen tops bathroom vanity top
Product name:
artificial quartz stone making machine
Supply Ability
Supply Ability:
200 Set/Sets per Year Hongfa Artificial quartz stone making machine in factory
Packaging & Delivery
Packaging Details
Packing suitable for Hongfa Artificial quartz stone making machine in factory
Port
southern China sea port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Hongfa New full automatic artificial quartz stone machinery artificial quartz slab making machine



Welcome to visit our factory to see the machine running!















The quartz stone slab production line is consist of following key machine:

  • continuous automatic grinding machine.
  • continuous automatic thickness calibrating machine.
  • Vacuum vibration pressing machine
  • Cutting machine
  • Quartz stone slab stacker
  • Plate turnover machine

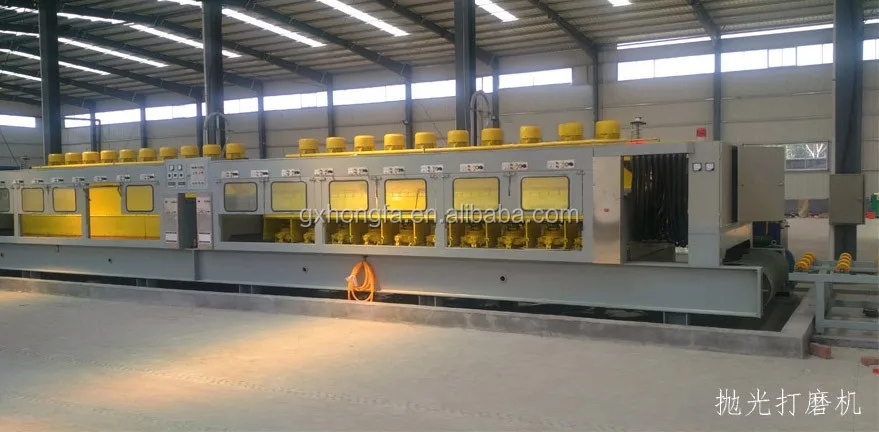

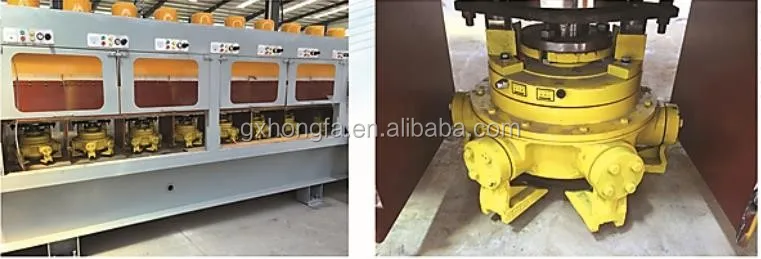

1.  LM series continuous automatic grinding machine.





LM series continous automatic grinding machine is used in process of artificial quartz stone slab.  There is 4 / 12 / 16 / 20 heads difference size machine, and there is 1m / 1.7m/ 1.9m most width grinding difference desinged.  The max lift range of the machine head is 100mm, which allows 50mm thickness of plate at most.  The machine have been optimized and upgraded on based on combining domestic and foreign advanced technology, which enhances its lading position in the field.

 Model

Grinding

head No.

Plate max width

of plate(mm)

Plate max

thickness(mm)

Total Kw  Dimension (mm)Weight(T)
8LM10081000501007600x2700x24609
8LM17081700501007600x3400x246011
8LM119081900501007600x3600x246012
12LM170121700501509800x3400x246015
12LM190121900501507600x3600x246017
16LM1701617005020012200x3730x246019
16LM1901619005020012200x3930x246023.5
20LM1902019005025016300x3930x246032

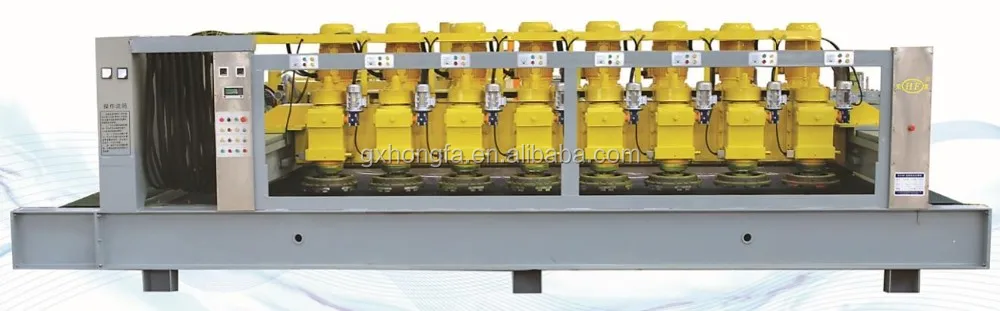

2.  LX series continuous automatic thickness calibrating machine


LX thickiness calibrating machine is designed for the process fo calibrate thickness before polishing artificial quartz stone. There are three size- 4 ends, 6 ends, 8 ends. It can process three width type quartz stone: 1m, 1.7m, 1.9m. Range of vertical stroke of the cutter is 60mm, the max thickness of precessable artificial quartz stone is 50mm.


 Model

Grinding

head No.

Plate max width

of plate(mm)

Plate max

thickness(mm)

Total Kw  Dimension (mm)Weight(T)
4LX1004100050705000x2800x22406
4LX1704170050705000x3500x22407
4LX1904190050705000x3700x22408
6LX10061000501006200x2800x22408
6LX17061700501006200x3500x224010
6LX19061900501006200x3700x224011
8LX19081900501307400x3700x224014

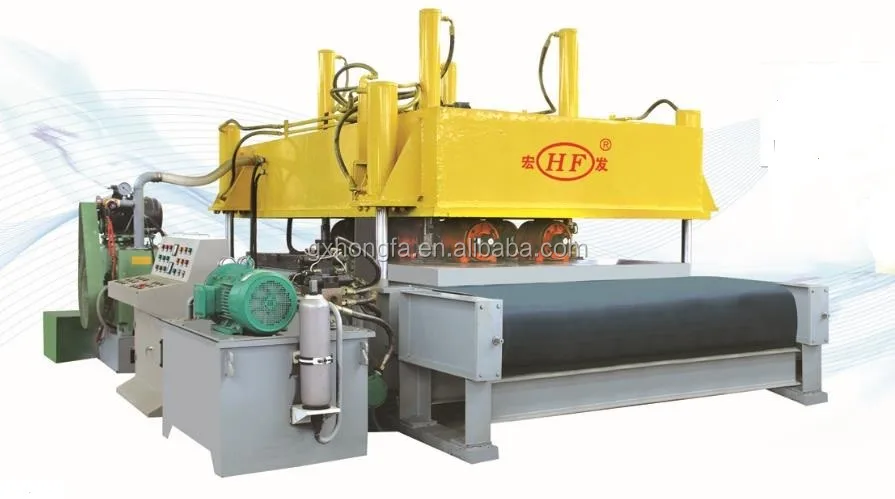

3. LY Vacuum vibration pressing machine


LY series vacuum vibration pressing machine is used to press bulk material into blank plate, which contains machine frame, vacuum box, vibration motor, lifting oil cylinder, pressurized cylinder, transmission parts, vacuum parts, hydraulic electric control etc. Compare with external type compressor, it has advantages such as low power consumption, light weight, low cost etc..

 Model

Plate max width

of plate(mm)

Plate max

length (mm)

Plate max

thickness (mm)

Total vibration

No.

Dimension (mm)Weight(T)
LY100X250100025005064760x1900x24008
LY100X310100031005065360x1900x24009
LY170X250170025005064760x2480x240014
LY170X330170033005065560x2480x240017
LY190X330190033005065560x2680x240019


4. LQ Cutting machine



LQ series cuting machine is used in vertical and holizontal cutting for the plate of quartz stone. It can make the plate pass continuously on the production line and cut down turnover of the plate. There are 4 blade and 5 blade two types according to the different thickness of plate, the plate can be cut to two part. The biggest plate can be cut into 3 sizes, 2500mm, 3100mm, 3300mm and so on, reliable guide rail and spindle structure make sure the incision straigtness, automatic control operational process, computer show data, the length and width can be adjusted within certain limits.



     Model

Plate max thickness

of plate(mm)

Plate max

          length (mm)

Conveyor motor

power (Kw)

Dimension (mm)
LQ80X25080025007.54150x2020x2000
LQ80X31080031007.54790x2020x2000
LQ170X330170033007.55000x2920x2000
LQ190X330190033007.55000x3120x2000


5.Quartz stone slab stacker







6. LF series plate turnover machine
