Compound Expanded Perlites and Cement Wall Panel Making Machine Lightweight Perlite Partition Wall Panel Production Line Machine

FOB Reference Price:Get Latest Price
US$25,000.00 - US$35,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Max. Working Width:
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Quick Details
More than 5 Years
Production Capacity:
50,000 to 500,000m2/Year
4kw/Mold Car
After-sales Service Provided:
Online support, Free Spare Parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Guangxi, China
Brand Name:
Expanded perlite panel making machine
8500kg with Aluminum Mold
Automatic Grade:
Fast Materials Filling,Fast Forming Speed
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Lightweight Wall Panel Production Line Machine
Key Selling Points:
High Productivity
Type of Wall Panel Machine:
Vertical Automatic
Advantage of the Wallboard Machine:
Mold Car can Lay Down and Raise Up Automatically
Multi Functional:
Wall Panel Machine can Produce 60mm to 250mm thickness Panel
Flexibility of the Panel Making Machine:
Length of the Wall Panel can be Adjusted from 1m to 3.5m
Less Power Required:
Mold Car only 4kw
High Productivity:
60m2/Mold Car/Cycle
Raw Materials of the Wall Panel:
Cement/Sand/Perlites/EPS Beads/Additives/Water
Side Board Cover Types:
Calcium Silicate Board/Cement Fiber Board/or without Side Cover
Application of the Wallboard:
Wall Construction of Buiding
Wide Products Range:
Can Produce Solid Panel/Foam Panel/Hollow Panel
Supply Ability
Supply Ability:
2000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Plastic Film Wrapping and Foam Film Package
Qinzhou Port
Picture Example:
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description
Product Description
Compound Expanded Perlites and Cement Wall Panel Making Machine Lightweight Perlite Partition Wall Panel Production Line Machine

1,Application of the Machine: to form the perlite wall panel,curing and demolding

2,Raw materials to produce the wall panel: Cement/sand/expanded and foam perlite and perlites beads/EPS beads/HPMC and other chemical addtitives/water

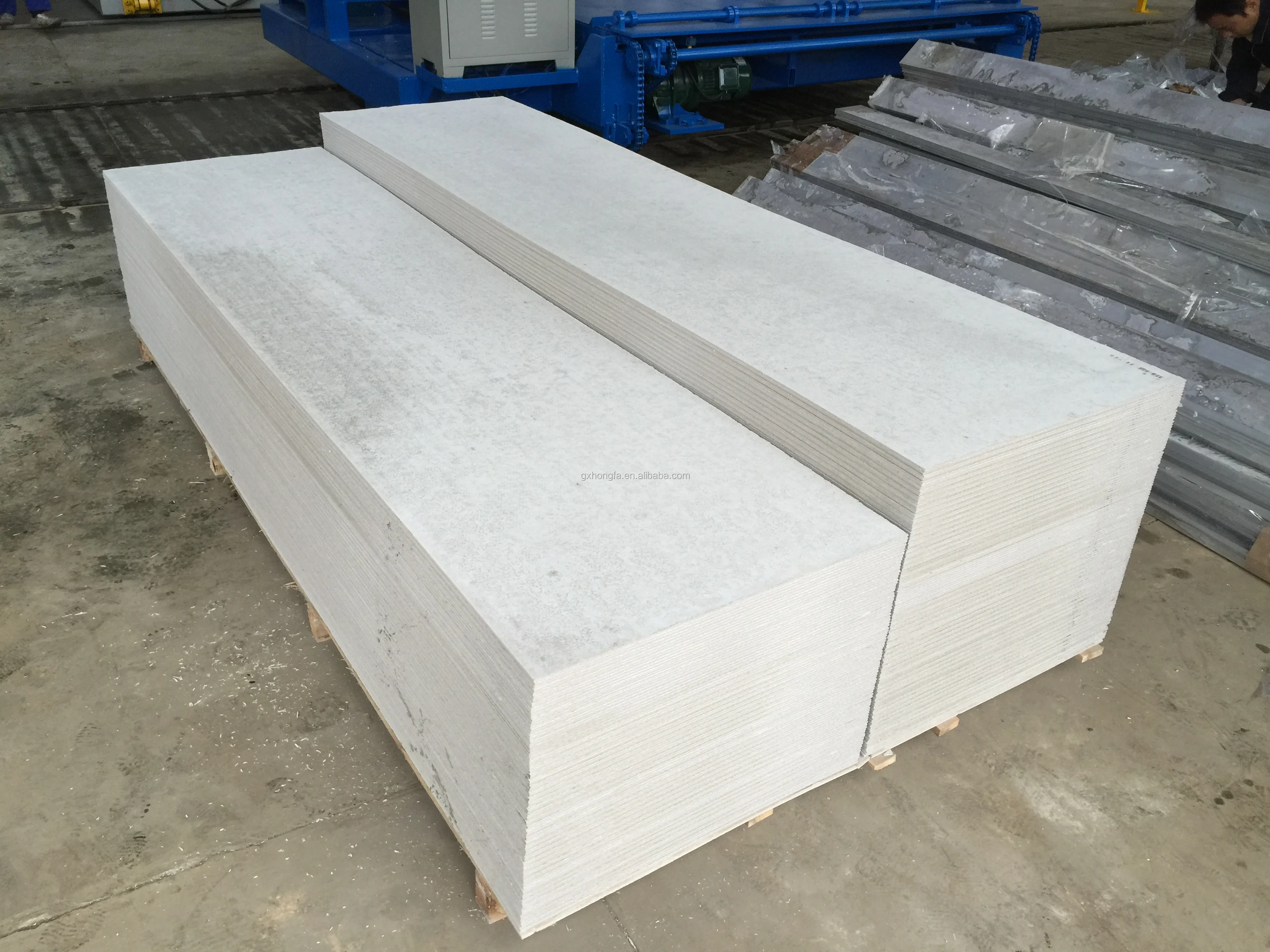

3,Side/surface cover of the wall panel: Calcium silicate board/Cement fiber board, also can be without side cover

4,Usage of the wall panel: Partition wall construction of school,hospital,commercial building,office and residential house

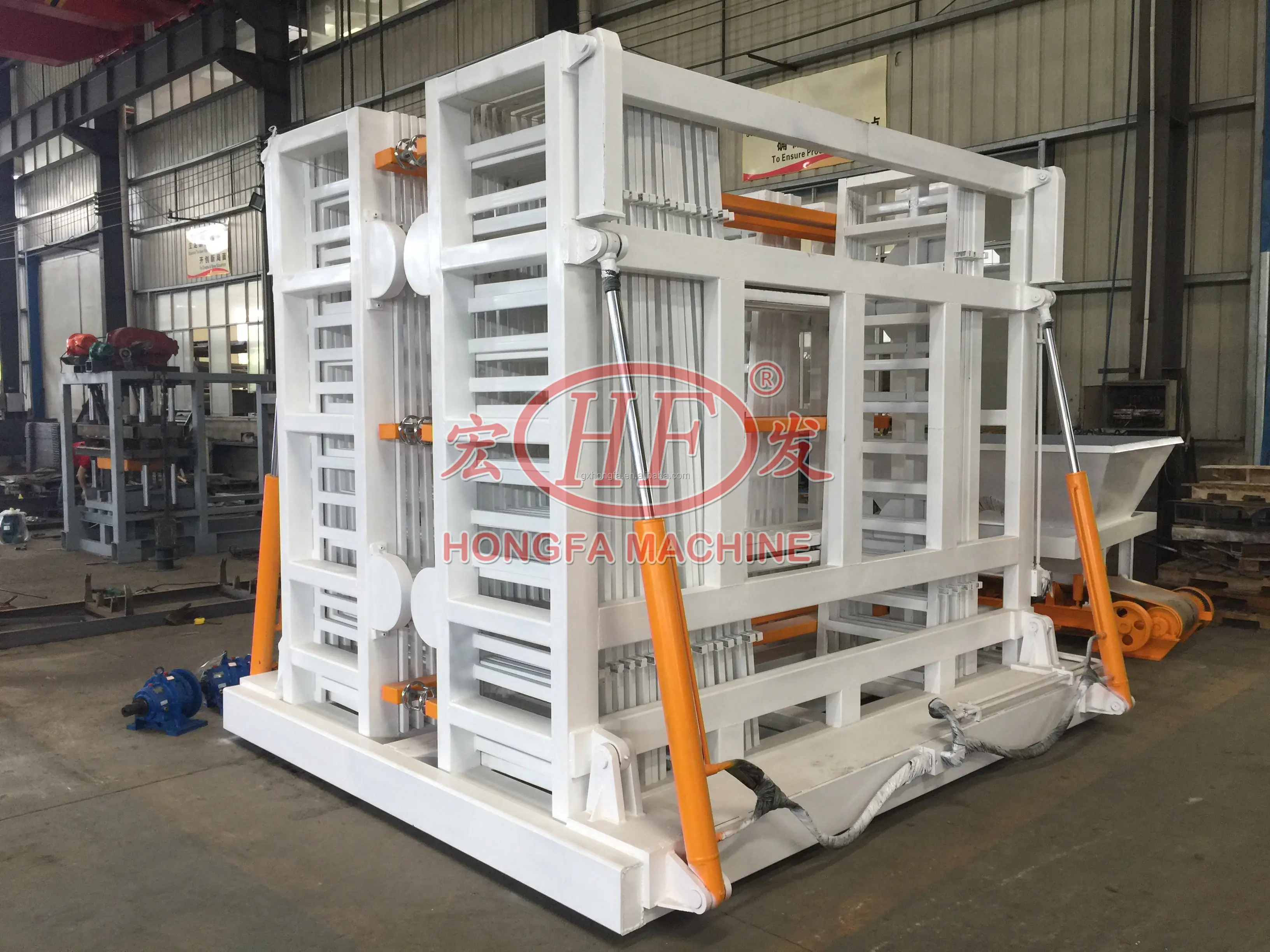

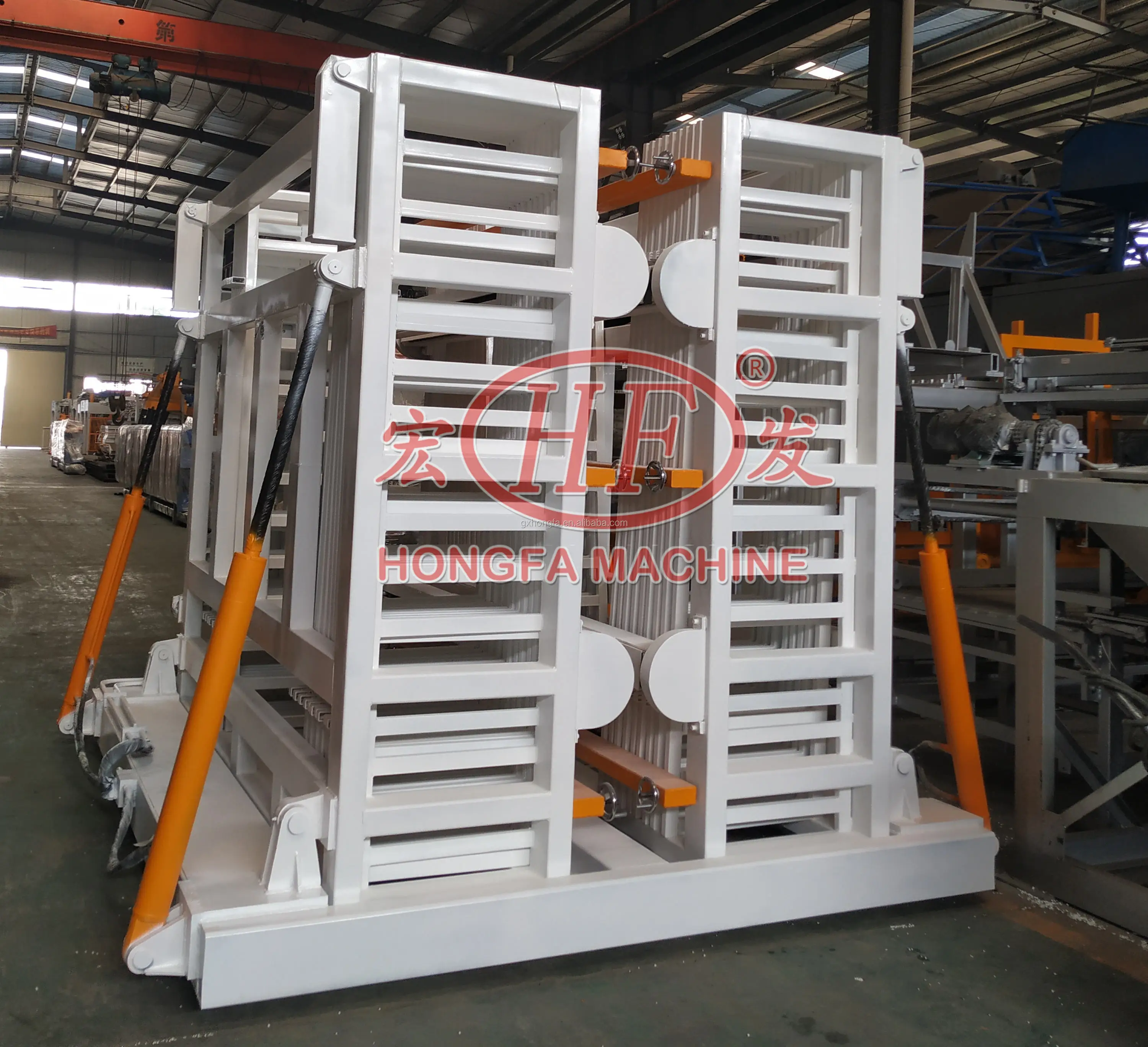

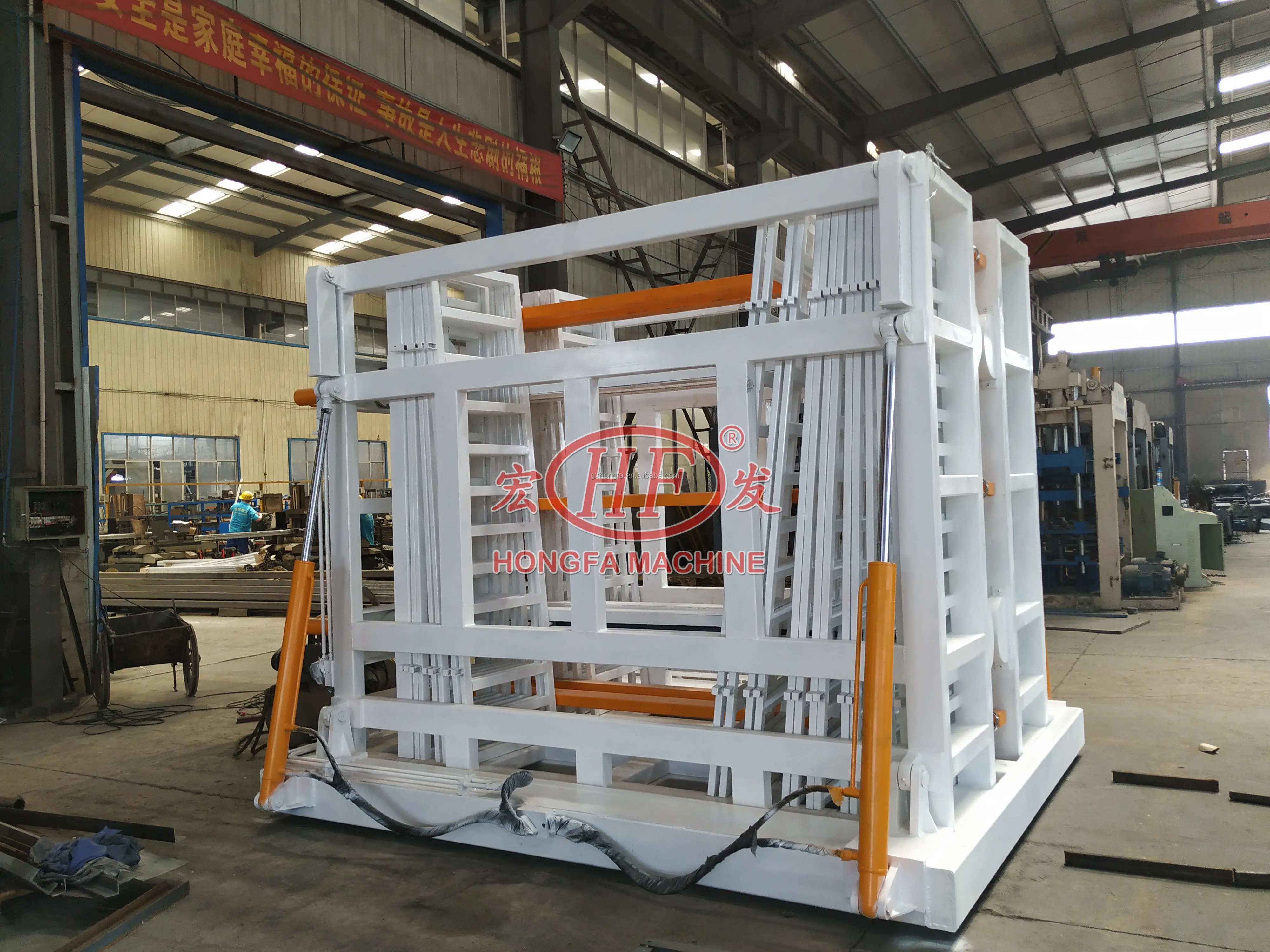

HFP530A Vertical Automatic Wall Panel Making Machine
Overall Dimension  mm
      Power      kw
Capacity of Each Mold with Different Wall Panel Thickness/Shift

40 pcs
36 pcs
32 pcs
30 pcs
26 pcs
22 pcs

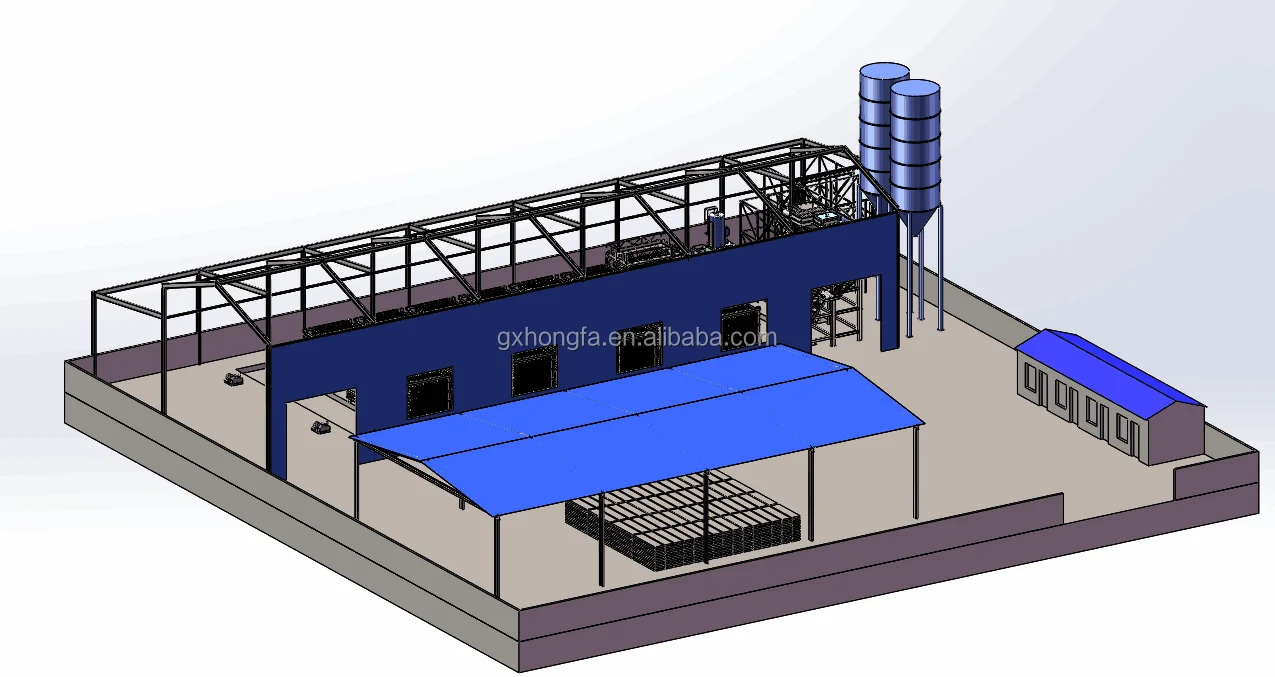

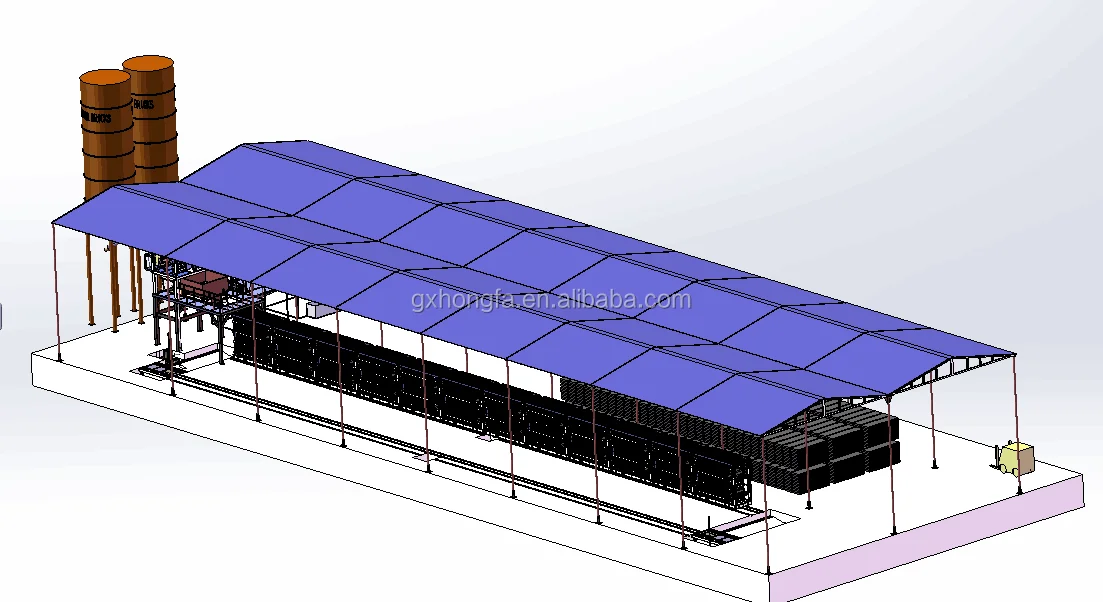

Typical Layout of the EPS Wall Panel Production Line
Main configuration machines and equipmemt: 1,Silo:storage cement/fly ash 2,Boiler: generates steam for the EPS expander 3,EPS Expander:Produce the foam EPS beads 4,Mixer:mix the raw materials into fine slurry 5,Filling Platform:fill the slurry into the mold car 6,Ferry Car: transport the mold car to the curing rails 7,Mold Car: form the EPS wall panel and curing 8,Winch Machine: move the mold car on the rails 9,Demolding and Stacking Machine: pull out the finished wall panel from the mold car and stack the panels for the forklift to transport to storage area.

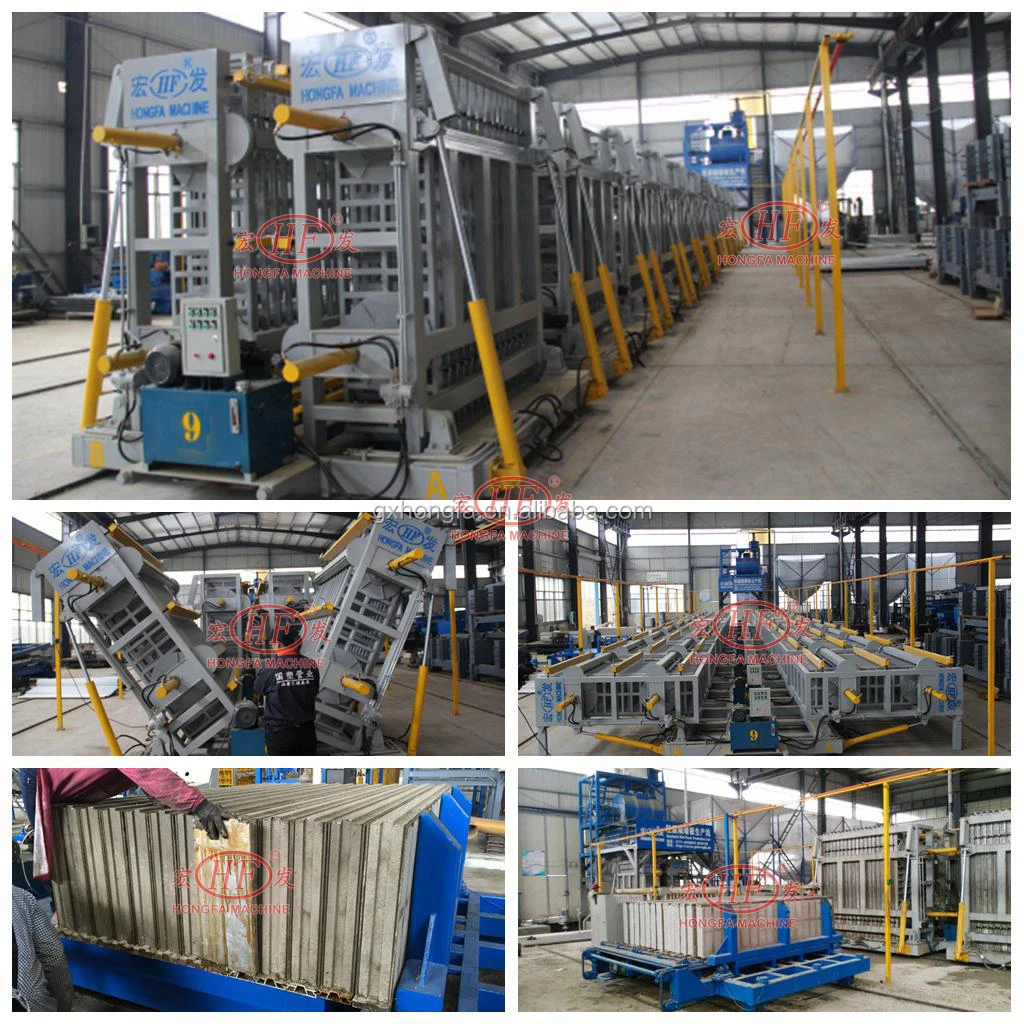

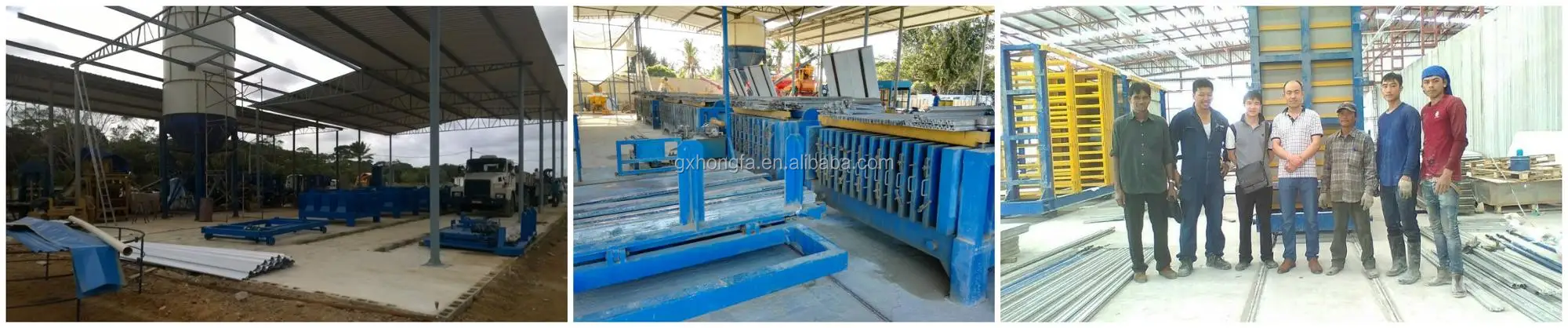

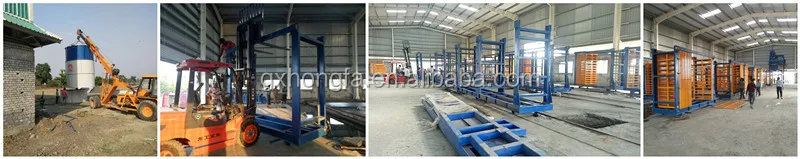

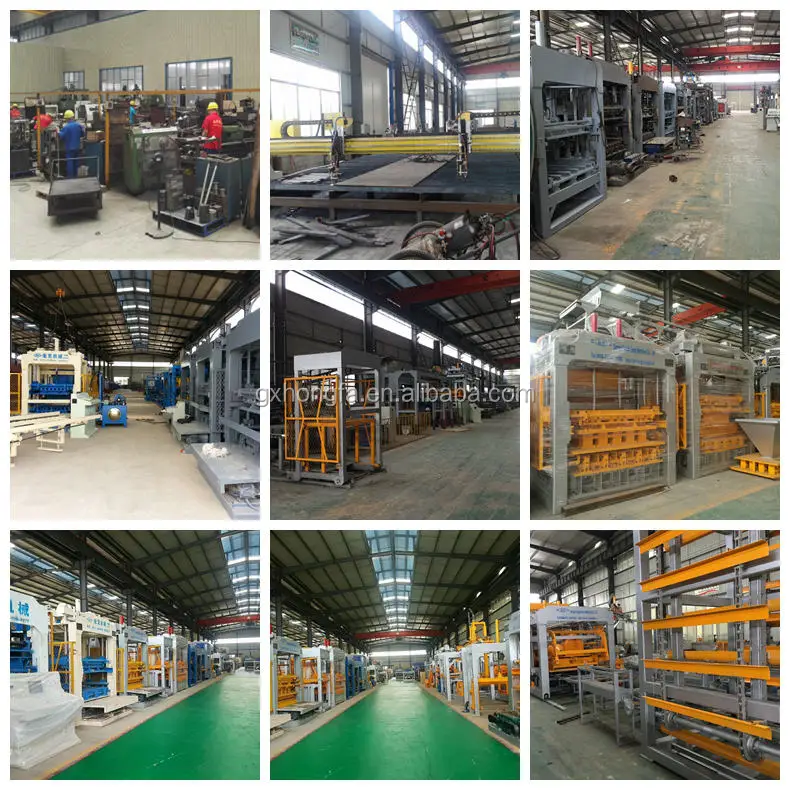

Factory of the Wall Panel Production Line
Land requirements: 2000 to 4000m2 workshop with 9 meters high roof is required for a reasonable size plant however this can change depending on the capacity of the plant. Lot of storage and open space will be needed to store the raw materials and finish products. Water requirements: To produce 1000m2 panels per day we require 20 ton of water only. No special requirements of water quality, ordinary clean water can be used for production. Electricity requirement: Installed power about 150 kw (depending on the capacity). Requirements of Air and Steam: Air compressor 1 set, and 0.5t capacity boiler. Workers requirement: A staff & workers’ strength of about 20 is enough to run a 20 mold car plant.
Detailed Images

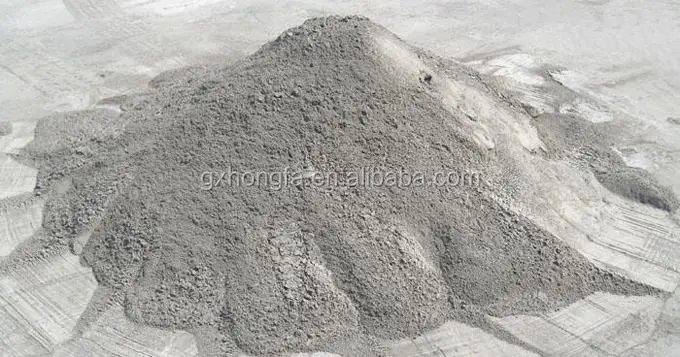

Samples of Main Raw Materials of the EPS Wall Panel
Small Wall Panel Samples

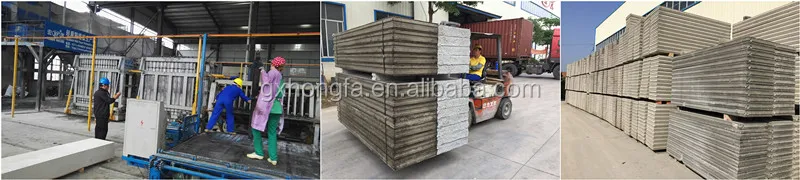

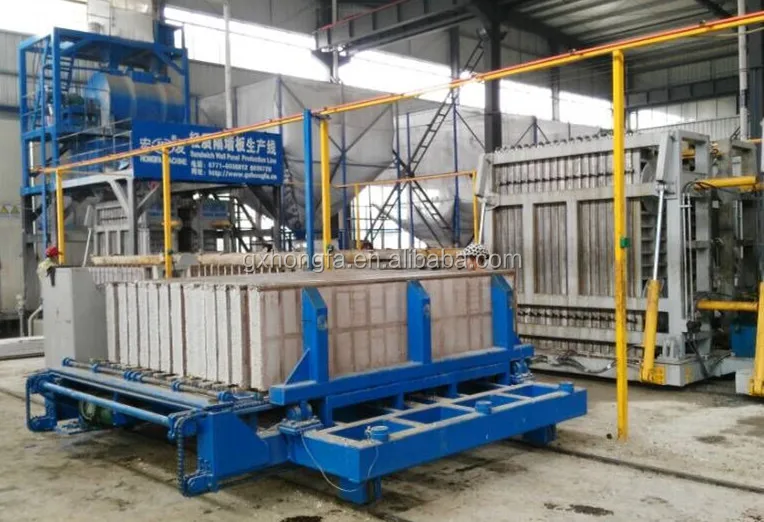

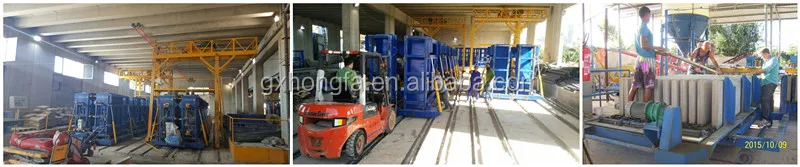

Finished Wall Panel Demolding

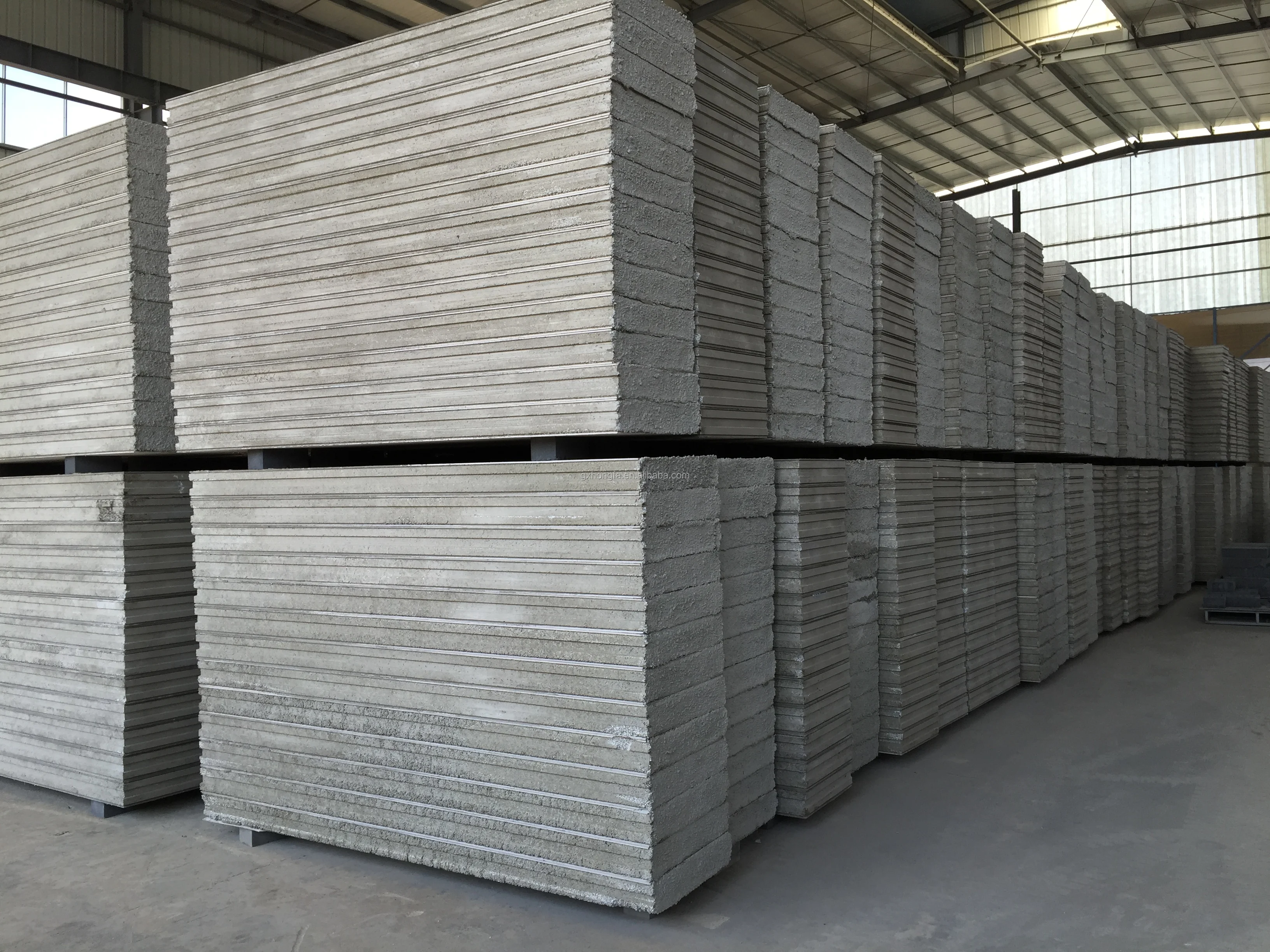

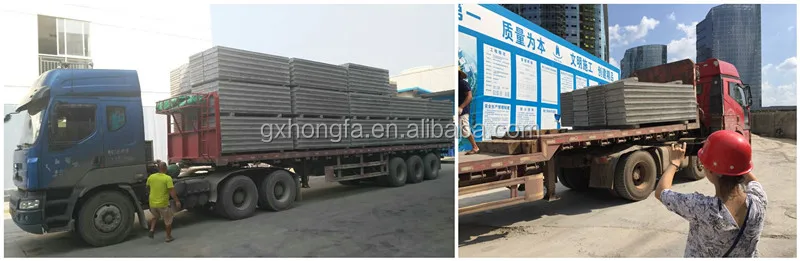

Finished Wall Panel in the Storage Yard

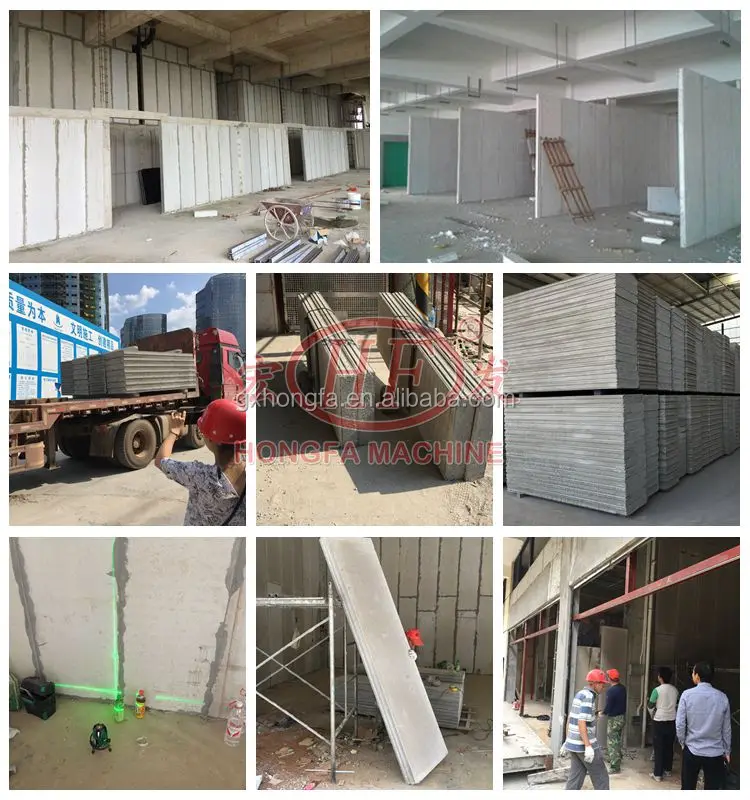

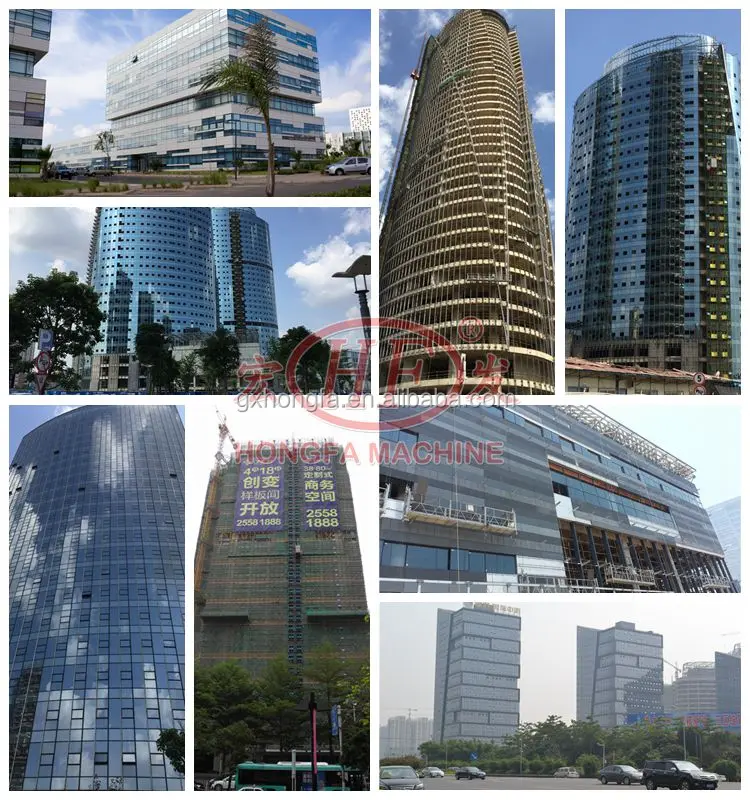

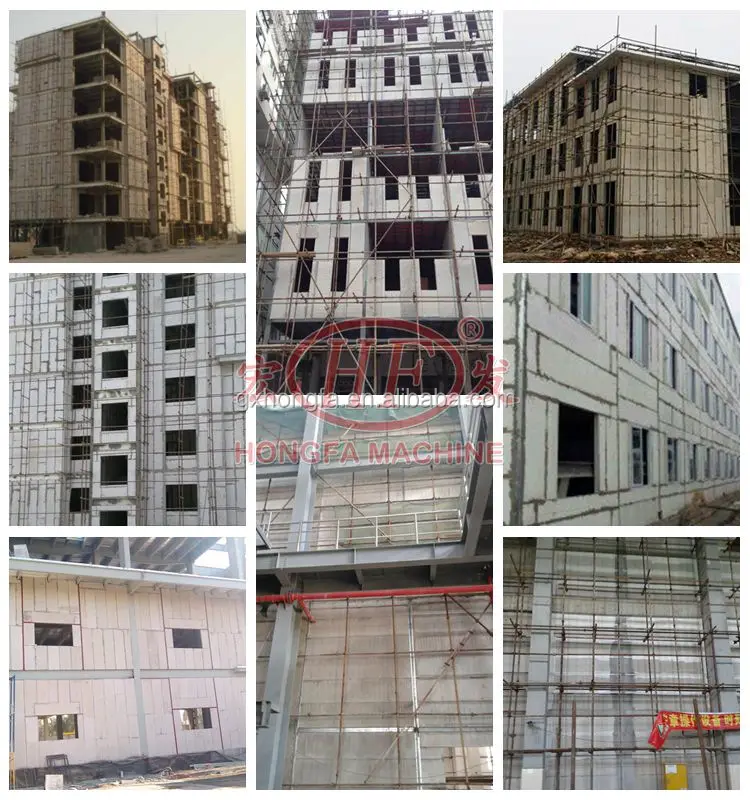

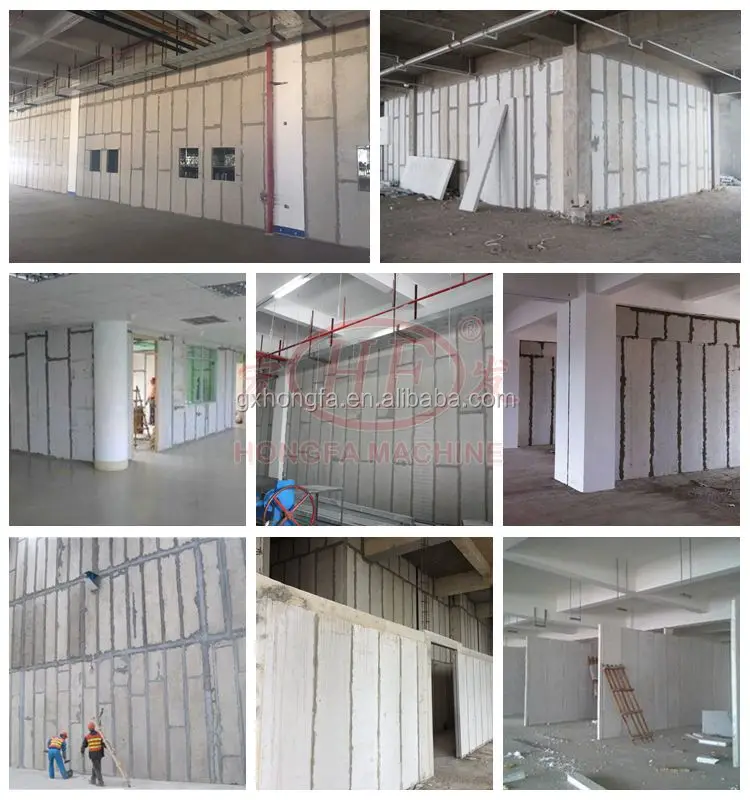

Application of the Wall Panel

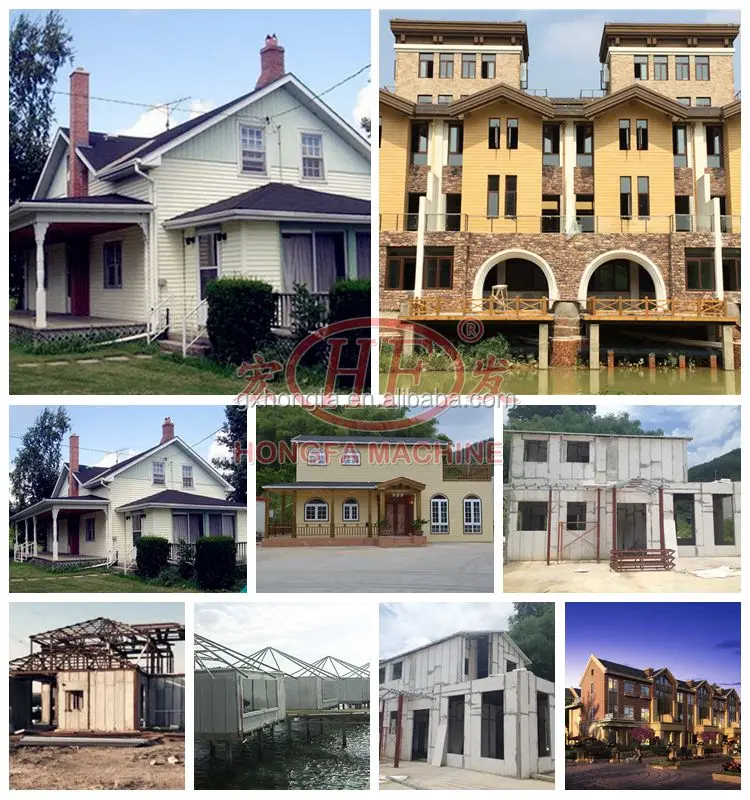

Application of the Wall Panel: Wall construction of commercial building,,skyscraper,office,school,hospital,residential houses,etc.

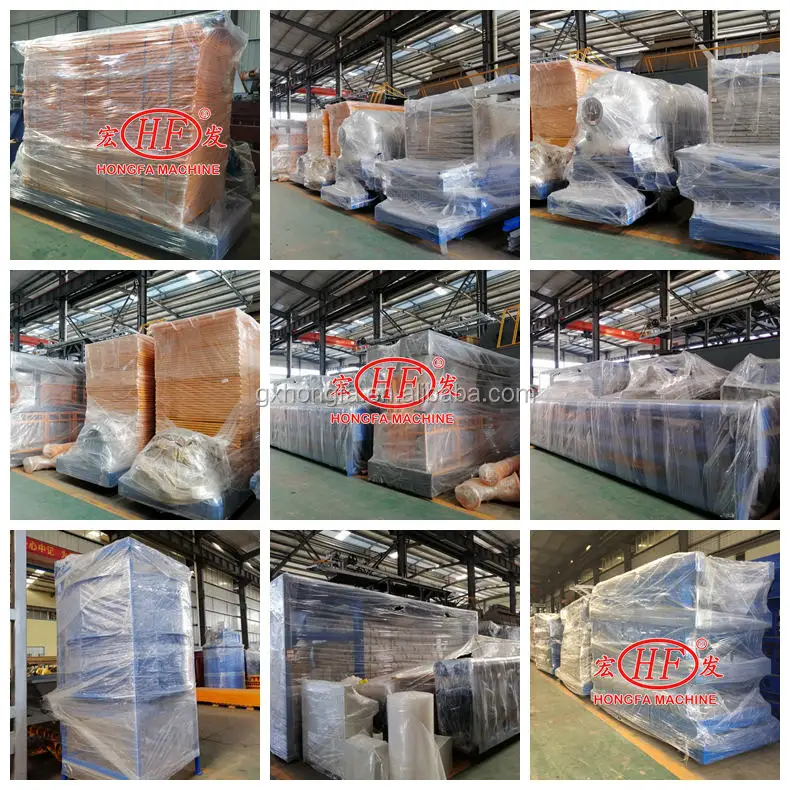

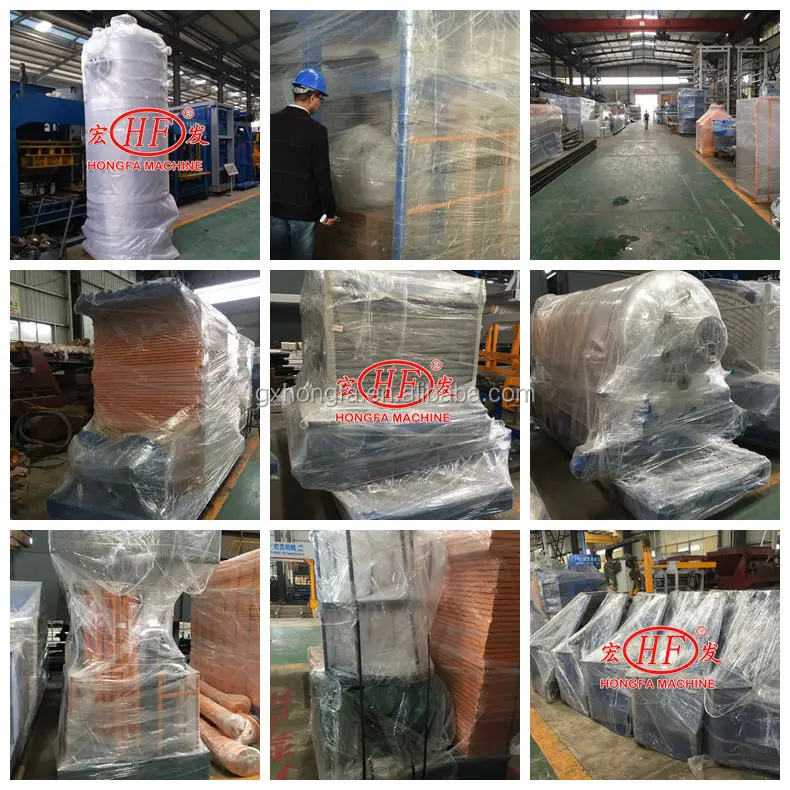

The Wall Panel Making Machine and Production Line Equipment will be well prepared and proper packaged with Plastic Film Wrapping.All process are accordance with international standard, which ensure the machines and equipment in the container are seaworthy.
After Sales Service
Company Introduction

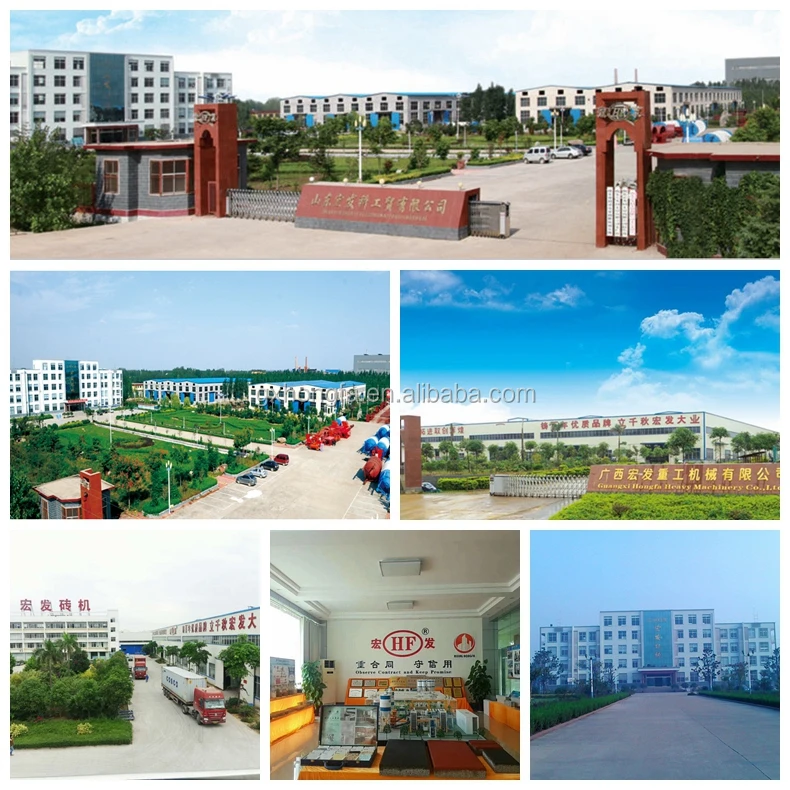

Guangxi Hongfa Heavy Machinery Co.,Ltd is a diversified manufacturer of Construction Materials Machinery and Production Line.We provide complete chain of construction machinery in one-stop. Our main products: Concrete block/brick/paving brick making machine and production line, EPS lightweight wall panel production line machine, AAC production line, Artificial quartz slab/stone machine, Terrazzo tile making machine, Concrete pipe making machine, Concrete batching plant, Block machines pallets, etc. We've provided services and machines, plants&solutions to clients from more than 120 Countries and regions. Such as the USA,Russia, Thailand, Myanmar, Laos, Cambodia, Philippines, Vietnam, India,Indonesia, Pakistan, Bangladesh, Iran, Iraq, Saudi Arabia, Lebanon, Bahrain, South Africa,Botswana, Namibia, Angola, Nigeria, Zambia, Uganda, Mozambique, etc.
